Our patented aluminium alloy plug-in system ensures maximum load capacity and a secure hold, even in the most demanding weather conditions.
Our practitioners and engineers have contributed their expertise to the development project, enabling us to create a sophisticated, top-quality product.
We have created a system that not only meets, but exceeds, the highest standards.
Advantages of aluminium panels from Cteam
1 Quick assembly and dismantling
- Quick installation and removal thanks to our plug-in system, which eliminates the need for time-consuming screw connections.
- The time window for assembly and dismantling is much shorter than with screw panels. For example, this can reduce stadium rental costs and enable more efficient project management.
2 Reduced risk of injury and trip hazards
- There are no protruding screw heads, which significantly reduces the risk of injury or trips for workers and visitors.
- The profiled surface ensures more traction on inclines and declines. Special profiles give pedestrians and vehicles a secure hold. Using roads is particularly advantageous in demanding applications.
- The connections for wide paths and surfaces are located within the side panel connections. This achieves an even surface and also reduces the risk of tripping. The internal lashing provides additional security and nice aesthetics.
3 Load capacity up to 250 tonnes per m²
- The high load distribution ensures optimum ground protection and minimum soil compaction. A structural analysis can be used to calculate the maximum compaction in advance, if requested.
4 Safeguard for machines and the environment
- No screws can be lost on arable land and meadows that could damage mowers or other agricultural devices. This protects both the equipment and the environment and prevents unnecessary repair costs.
5 Varying dimensions
- Thanks to our range of different dimensions, we can offer maximum flexibility in terms of costs and project requirements.
Technical data
Material
Extruded aluminium profiles made from high-quality alloy
Dimensions
Length: 242 cm, widths: 150 cm, 200 cm, 300 cm (path widths of 2,3,4,5,6...m are possible), thickness: 4 cm
Weight
300 cm = 245 kg, 200 cm = 165 kg, 150 cm = 125 kg
Load
250 t/m²
Suitable for
Heavy goods transport, crane vehicles, excavators with rubber chain

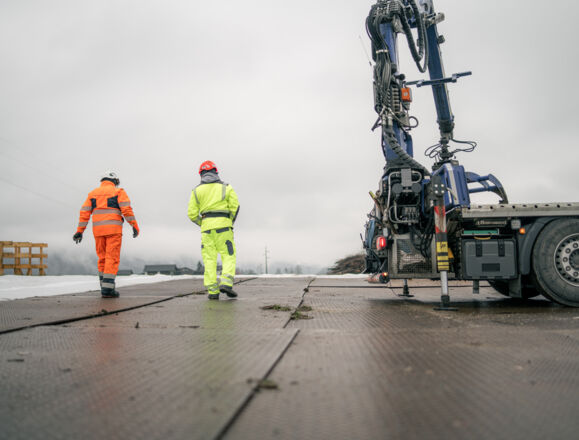

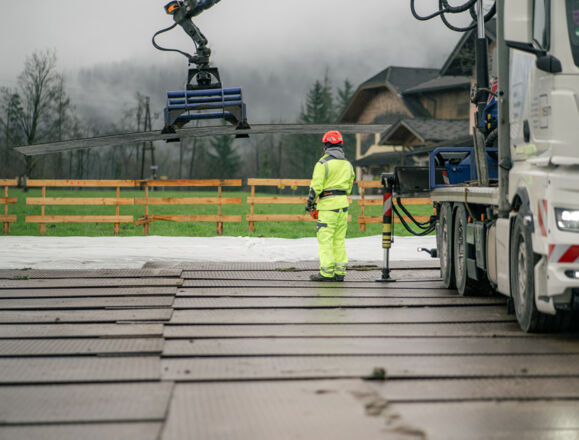

Temporary access and assembly areas
Thanks to low assembly costs, our temporary access roads and assembly areas offer high flexibility. Side connections with tabs from a width of 3.0 m provide additional stability.
The profiled surface ensures more traction on inclines and declines. Special profiles give pedestrians and vehicles a secure hold. Using roads is particularly advantageous in demanding applications.
Possible applications for our mobile construction roads
- In wind farms and agricultural areas
- Heavy goods transport in difficult terrain
- For festivals, events and open-air activities
- Over streams and in boggy and marsh land
- For tight and limited access
- Set up of temporary assembly areas with high load capacity
